FT Switch
Call Us For Enquiry!
+91-9022221814
Features
- Facilitates easy in-situ, onload testing of relays, metering and control panels without disrupting load circuit.
- Easy and safe for technicians to isolate protection relays, inject test signals and verify system performance.
- Rugged Construction
- Substantially reduces commissioning and routine maintenance
- Compatible with other popular brands of test plugs.
Description

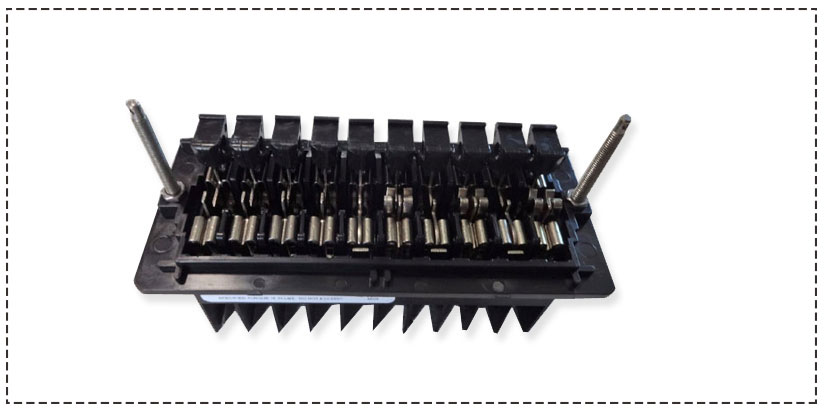

We are Manufacturers, Exporters & Leading Suppliers of FT Switch / FT Switches located in Mumbai, India. The housing is robust, high grade phenolic moulding, capable of long, trouble free performance in varied climatic conditions. It is designed and manufactured for indoor application. The terminals are brass, duly nickel plated. The contacts are spring loaded, silver plated and supported by phosphor bronze strips. Each contact is separated with a SRBP shroud. Screws are provided at the rear for terminations. Alternatively, studs with nuts and washers could also be provided. Sealing holes on cover studs are provided to prevent unauthorized access. The front cover can be removed for test purpose and replaced, thereafter.
Insulation
- Conforms to : IEC 60255 27 : 2013
- Tested for 2.5 kV.
- IR Value : >200 mΩ
Mounting
- Test block can be projecting or flush mounted.
