Test Terminal Block Manufacturer - Series: NW-13 |
Test Terminal Block Manufacturer - Series: NW-13
Call Us For Enquiry!
+91-9022221814
Features
- Facilitates easy testing.
- Rugged construction.
- High electrical strength.

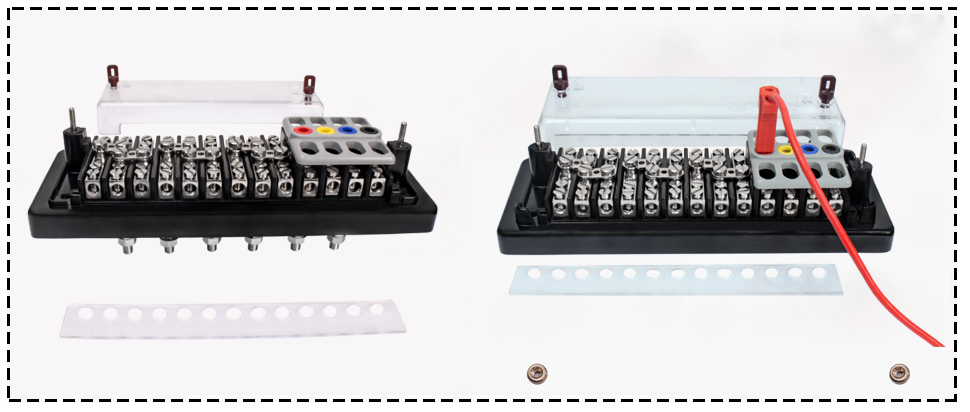

- Colour coded Banana Sockets on potential / voltage Terminals helps insert voltage from external source via Banana Plugs.
- Extended top transparent cover-optional.
- Housing : Phenolic moulding, Black.
- Top Cover : Phenolic moulding, Black. optional transparent polycarbonate.
- Terminals, screws & links : Brass, Nickel plated.
- Rated voltage : 1100 V max.
- Rated current : 50 A max.
- Smart Knobs for sealing helps in quick and easy sealing thus saving technician’s time and effort.
|
TYPE
|
CODE
|
|---|---|
|
13-way front connected with black Cover.
|
NW13-FC-SC
|
|

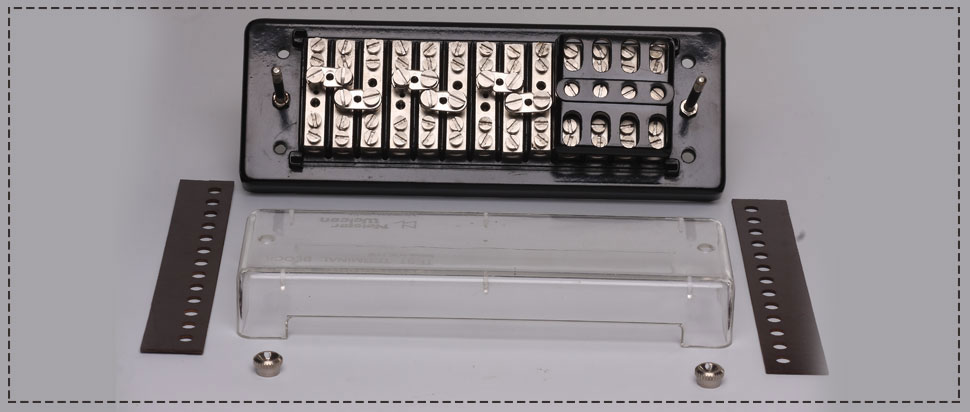

13-way front connected with transparent Cover.
|
NW13-FC-TC
|
|

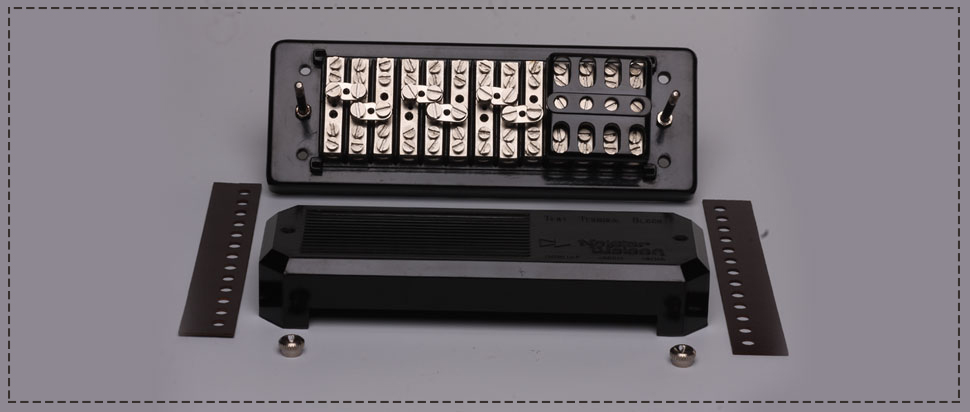

13-way back connected with black Cover.
|
NW13-BC-SC
|
|
13-way back connected with transparent Cover.
|
NW13-BC-TC
|
