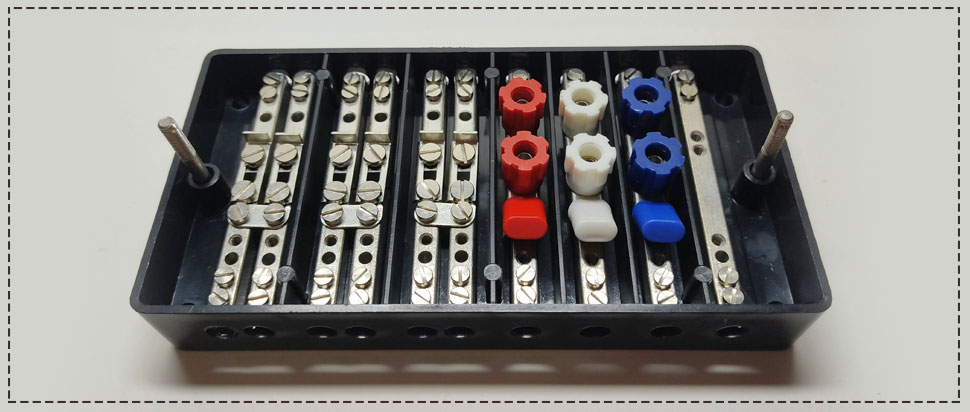

Test Terminal Block. Series: NW-KB |
Series: NW-KB
Call Us For Enquiry!
+91-9022221814
Features
- Facilitates easy & safe in-situ testing of C. T. operated metering systems without disrupting load circuit.
- Robust construction.
- High electrical strength.
- Facilitates injecting voltage from external source by using Banana Plugs.
- Easy sealing arrangement.
- Bridging Link option available for earthing of current returns with C-phase. Return of current thus connected to earth.
- Extended robust fire retardant transparent Polycarbonate Cover.
- Conforms to IEC 60255-27:2013
|
TYPE
|
CODE
|
|---|---|
|
Test Terminal Block. Front connected. Without Bridging Link
|
NWKB-FC-01
|
|
Test Terminal Block. Front connected. With Bridging Link
|
NWKB-FC-02
|
